产品简介

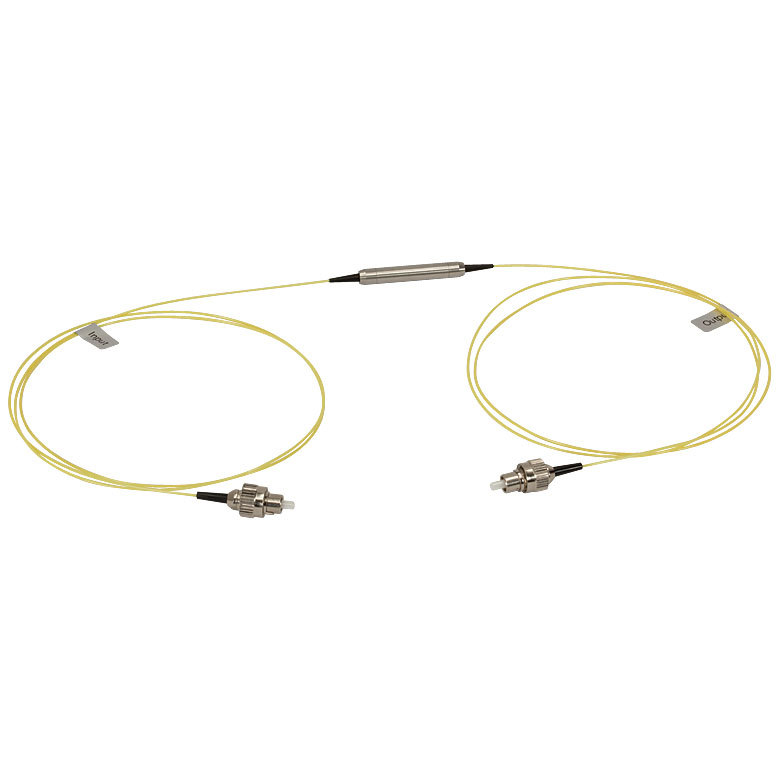

High Power Polarization Maintaining Isolator
Features
High Power Handling
Optical Path Epoxy-free Design
High Return Loss
Low Insertion
Applications
Fiber Laser
Fiber Amplifier
DWDM systems
Lab Research
Product Characteristics
Parameters | Unit | Values | ||
Stage | dB | Single Stage | Dual Stage | |
Central Wavelength | nm | 1060 1310 1480 1550 | ||
Operating Wavelength Range | nm | ± 20 | ||
Typ.PeakIsolation | dB | 42 | 56 | |
Min. Isolation in Band (at 25℃) | dB | 28 | 48 | |
Typ.Insertion Loss(at 25℃) | dB | 0.4 | 0.5 | |
Max. Insertion Loss | dB | 0.55 | 0.65 | |
Min. Return Loss | dB | 55 | 55 | |
Min. Extinction Ratio (only for B Type) | dB | 22 | 22 | |
Max. Optical Power (CW) | W | 1 3 5 10 or Specify | ||
Fiber Type | / | PM 980 Panda fiber | ||
Tensile Load | N | 5 | ||
Operation Temperature | ℃ | -5 ~ +70 | ||
Storage Temperature Range | ℃ | -20 ~ +85 | ||
