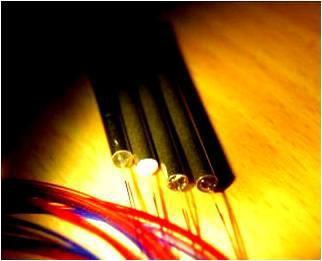

10W高功率单模光纤耦合器(可选波长980nm/1310nm/1550nm)
产品特点:
低附加损耗 Long-haul Telecommunications
任意分光比可以定制 CATV Systems & Fiber optic Sensors
小尺寸
高功率
应用领域:区域网络
长距离工作系统
光纤传感/CATV系统
高非线性光纤效应
光学参数
Configuration | Unit | 1×2/2×2 | ||||
Type | High Power Fused Optical Coupler (HPC) | |||||
Operating Wavelength | nm | 980 or 1310 or 1550 | 980 or 1310 or 1550 | 1260-1620 | ||
Operating Bandwidth | nm | ±20 | ±40 | -- | ||
Max Insertion Loss | 50/50 | % | 3.35/3.35 | 3.40/3.40 | 3.80/3.80 | |
40/60 | % | 4.40/2.55 | 4.40/2.60 | 5.10/3.10 | ||
20/80 | % | 7.55/1.25 | 7.60/1.25 | 8.30/1.60 | ||
10/90 | % | 10.80/0.65 | 11.00/0.65 | 11.50/1.05 | ||
5/95 | % | 14.00/0.40 | 14.20/0.40 | 14.60/0.80 | ||
2/98 | % | 18.00/0.25 | 18.50/0.25 | 18.80/0.70 | ||
1/99 | % | 21.50/0.20 | 21.50/0.20 | 22.50/0.65 | ||
PDL | dB | ≤0.10 | ≤0.15 | |||
Return Loss | dB | ≥50.00 | ||||
Directivity | dB | ≥55.00 | ||||
Operating Temperature | Deg. | -5-75 | ||||
Storage Temperature | Deg. | -40-85 | ||||
Fiber Length | m | 1.00±0.10 | ||||
Fiber Type | Clear Curve® XB | |||||
Input max. Power Handling | W | ≤5W | 5W-10W | |||
Package | mm | 3×54 | 75×12×8 |
NOTE: The parameters do not include connector, connector IL is 0.30dB
订购信息:
HPFC | X | X | XX | X | X | X | X |
HPFC: High Power Fused Optical Coupler | Configuration | OperatingWavelength | Coupler Ratio | Input max. Power Handling | Package | Fiber Type | Connector |
1:1×2 | 1: 3×54 | 1:ClearCurve® XB | 1:none | ||||
2:2×2 | 1:980 | 50:50/50 | 2: 75×12×8 | 2:LC/UPC | |||
2:1310 | 45:45/55 | 1: ≤5W | 3: other | 2:ofs-16 | 3:LC/APC | ||
3:1550 | …… | 2: 5W-10W | 3:ofs-20 | 4:SC/UPC | |||
4:1260-1620 | 01:1/99 | 3:other | 4:HI 1060 | 5:SC/APC | |||
5:other | 5:HI 1060Flex | 6:FC/UPC | |||||
6:other | 7:FC/APC | ||||||
8:other |
